DB01

DB01

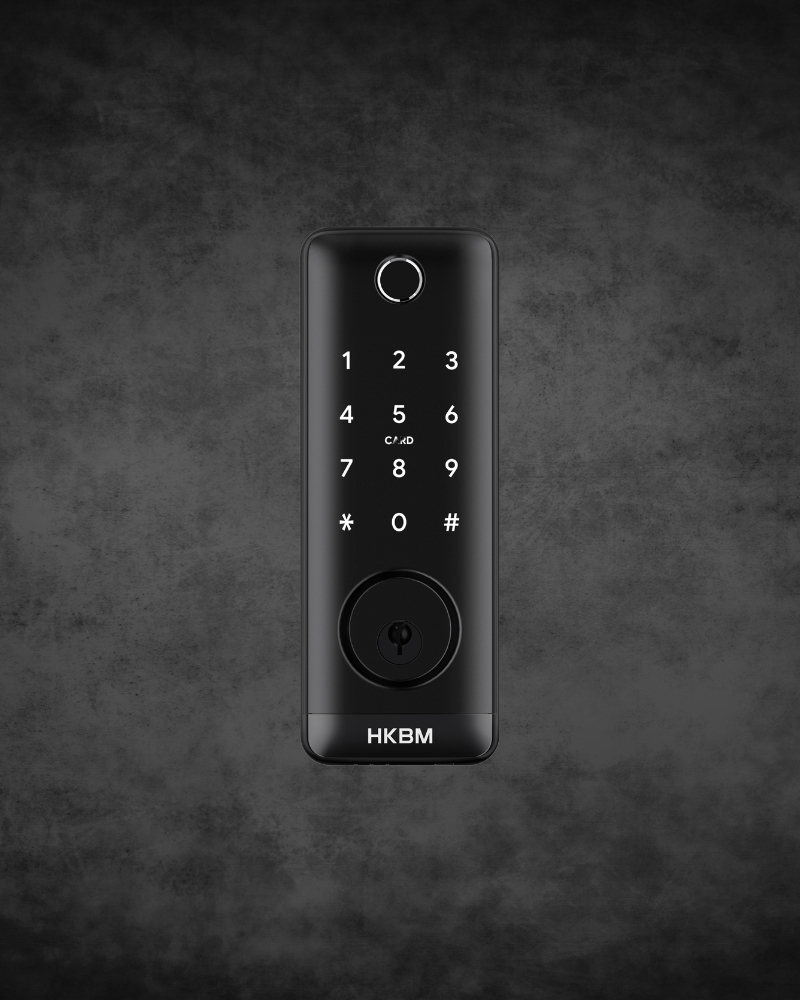

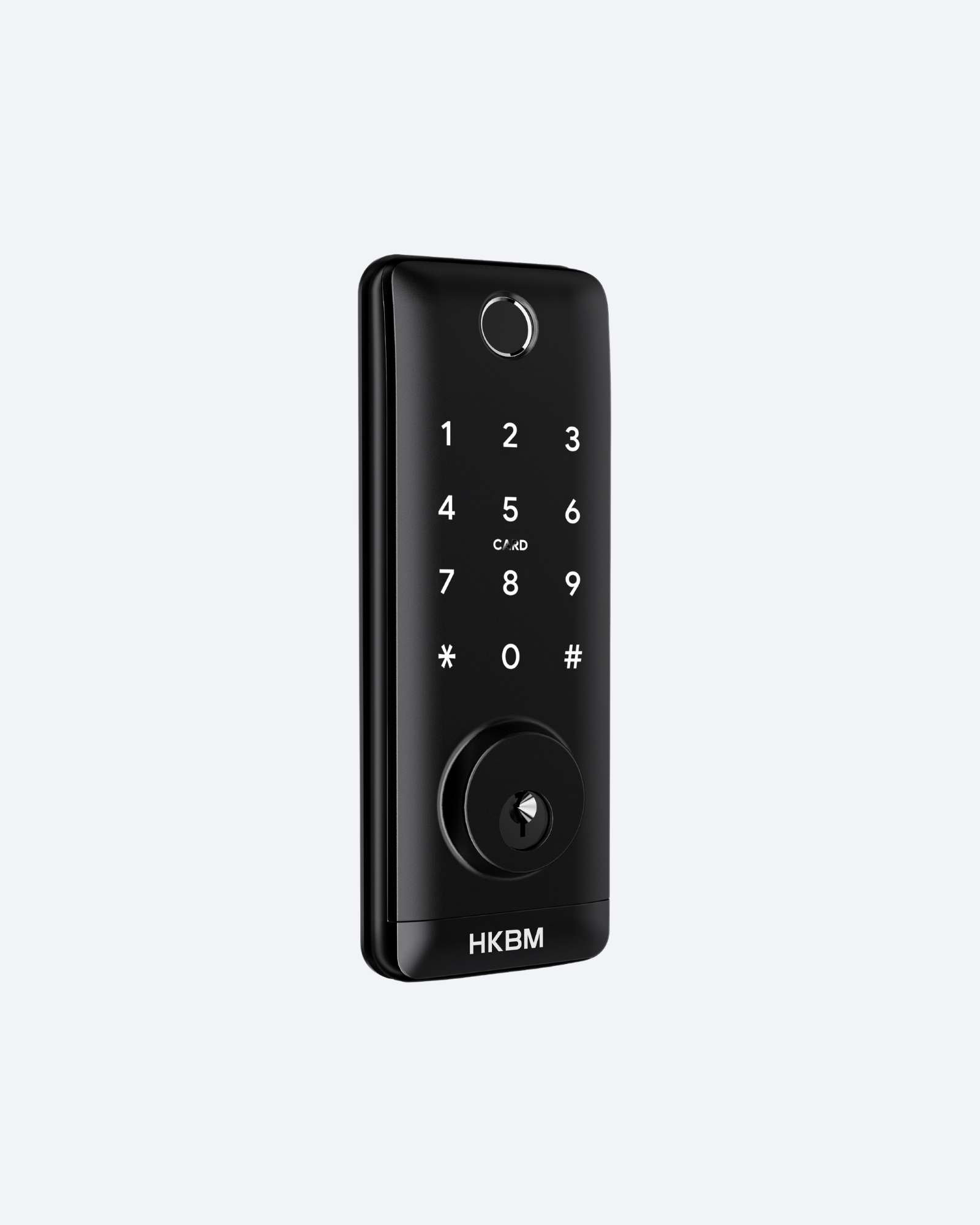

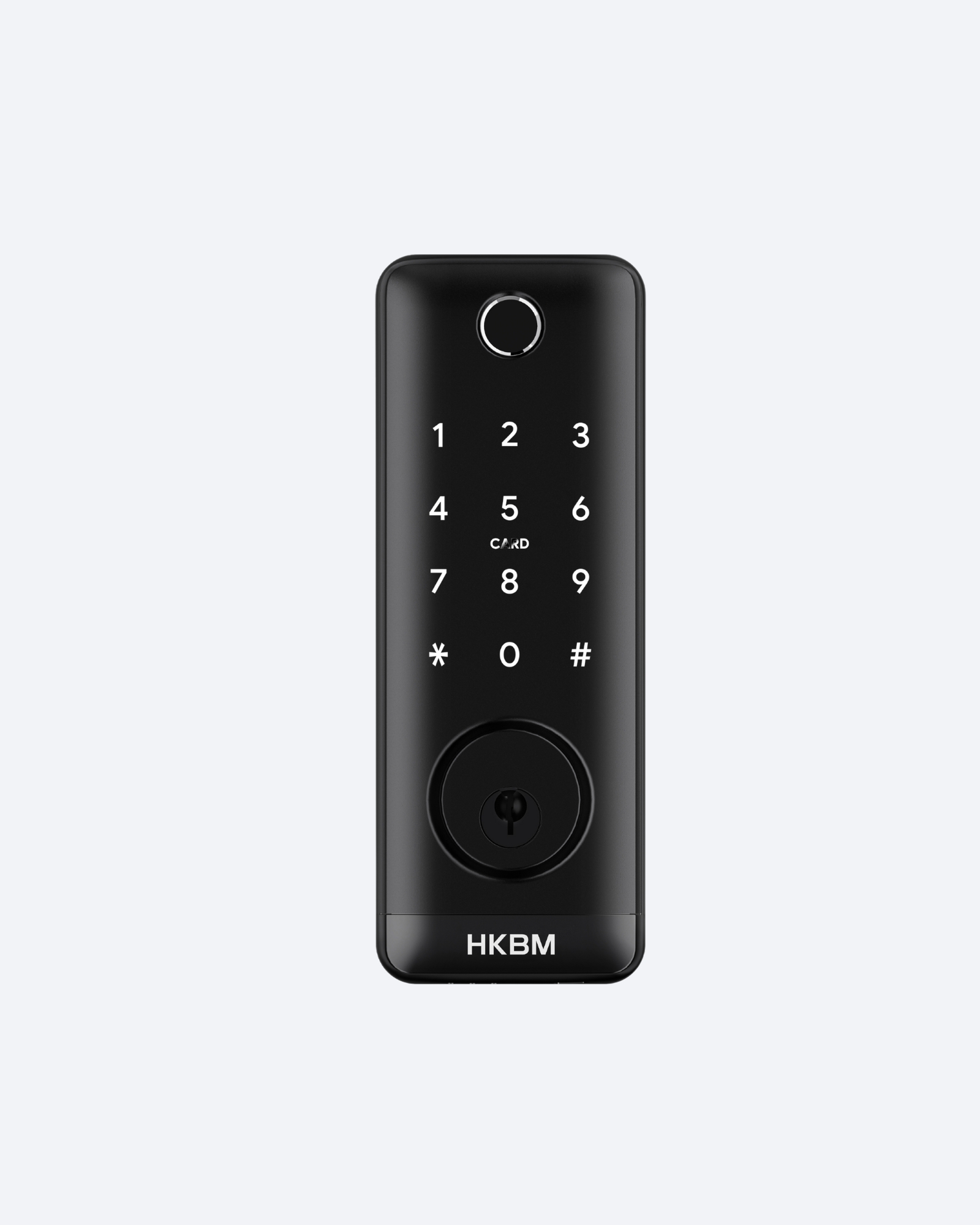

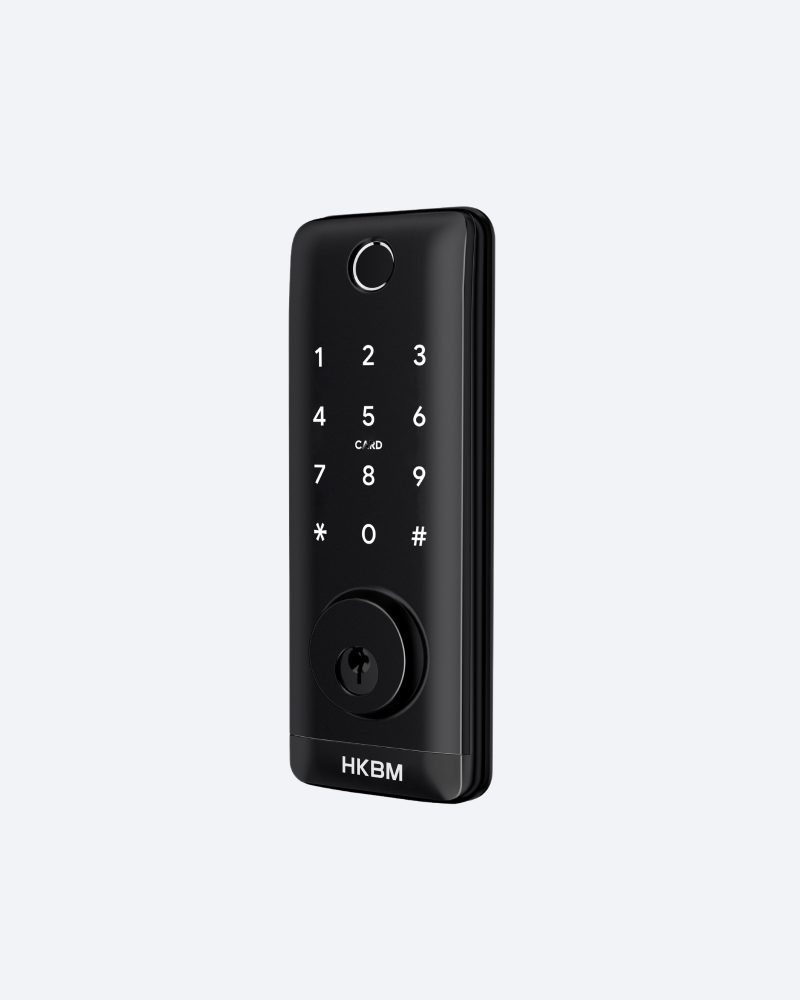

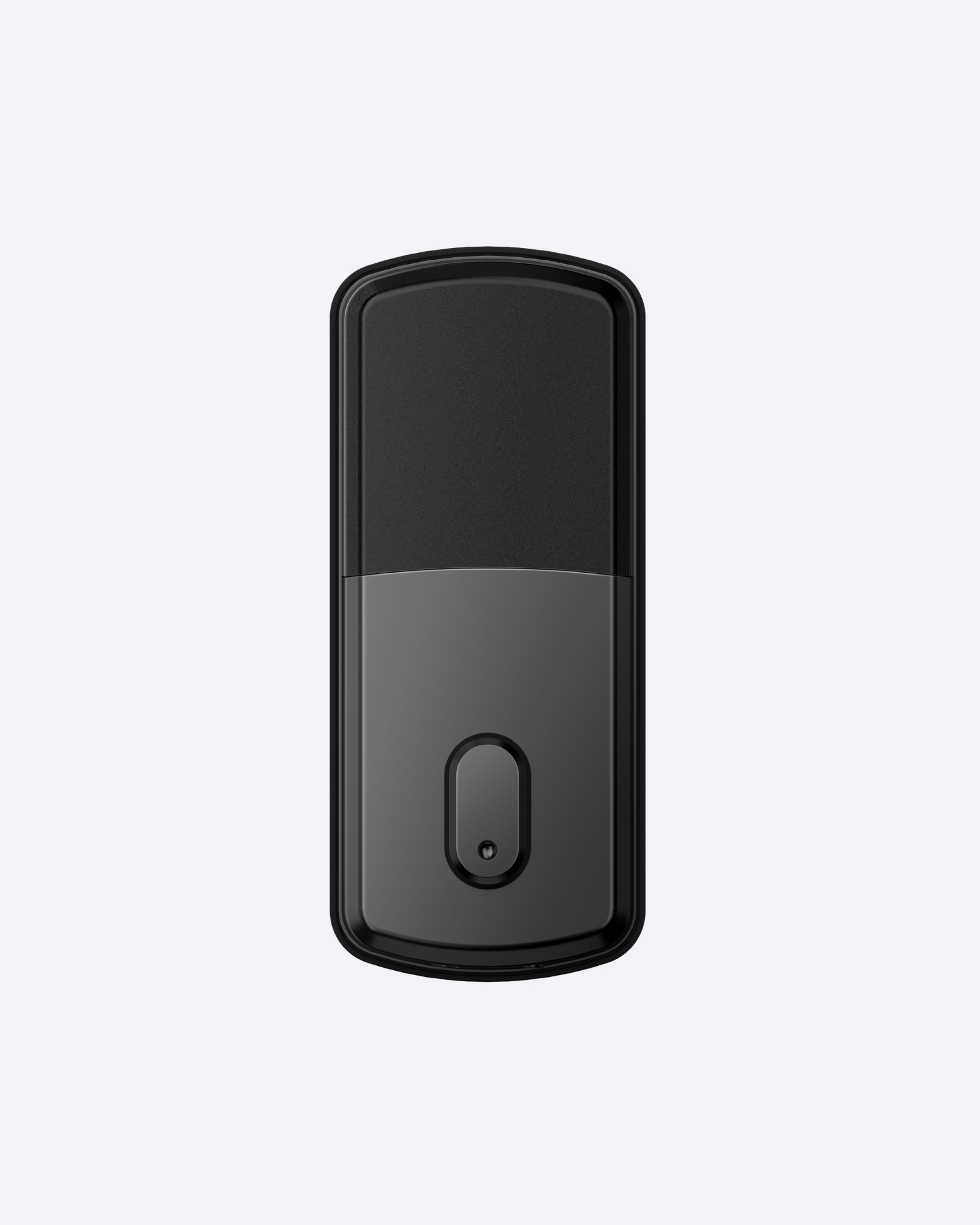

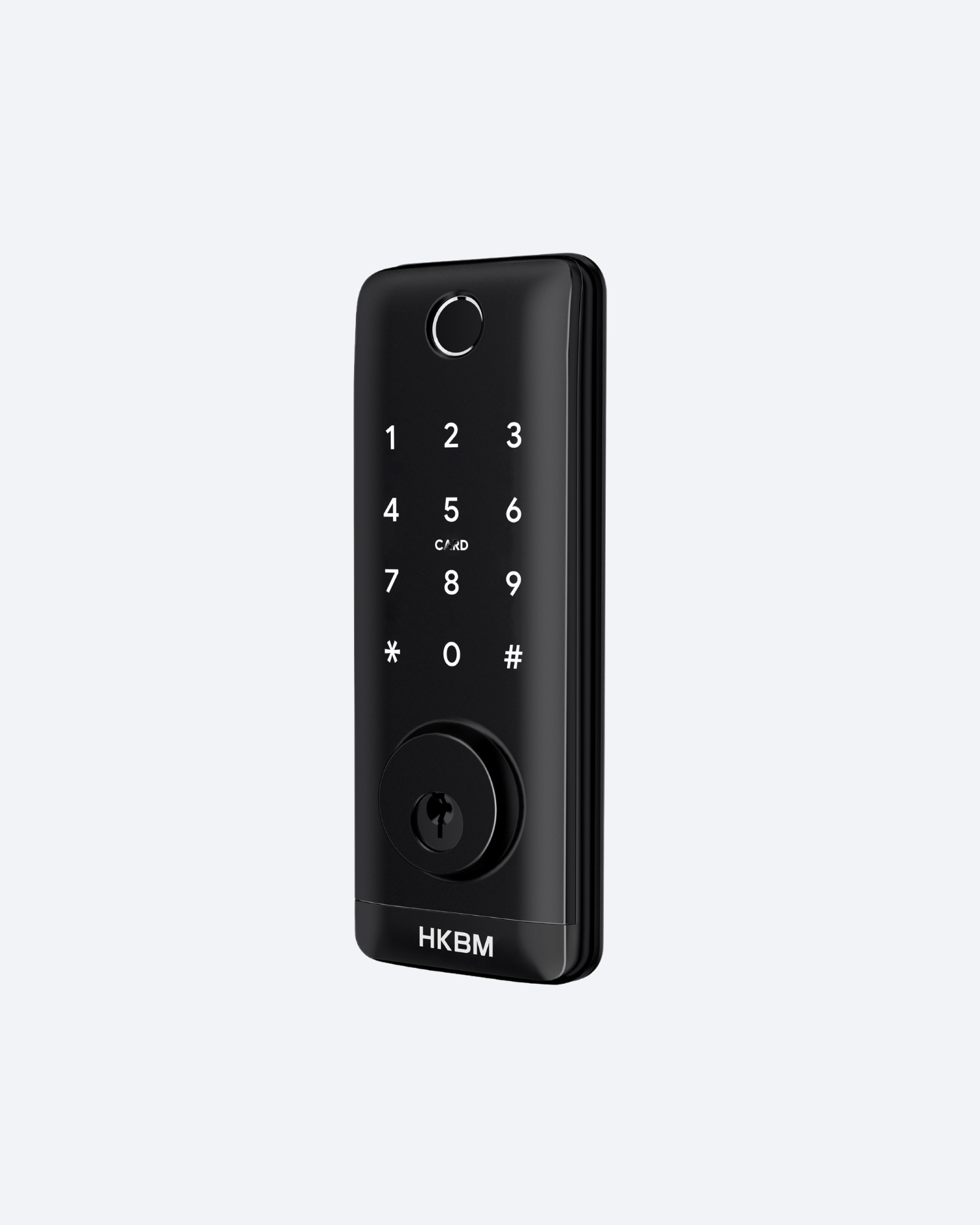

Heiken’s smart digital locks are always equipped with advanced features that offer simplicity and convenience to the user. The S800 – DB01 is a model of digital type of conventional deadbolt lock, suitable to upgrade main entrances and office door as digital lock without removing existing lock. Installation manual is provided. It takes door opening experience to the next level by offering multiple options such as Mobile Application (via Bluetooth), Antipeep password (PIN), Cards, Fingerprint, and Mechanical Keys. For emergencies, the micro-USB port and mechanical keys can be utilized. The S800 – FP01 has great features such as waterproof (IP55) surface, responsive number pad and fingerprint sensor, fast response, and robust structure. Still feeling insecure somehow? No problem. All records can be trailed from mobile phone. Free batteries are provided.

Description

General Features:

Area: Additional for Main Entrance, Office
Hassle free upgrade from conventional mechanical deadbolt lock
Autolock: Yes
Lock Dimension: 22mm (D) x 169mm (L) x 63mm (H)
Colour: Matt Black
User Capacity: 200 fingers, 150 PINs, 200 cards, unlimited E-key
Latch: SS304 Adjustable 60/70mm Deadbolt Latch
Easy Installation & Set Up
Type C USB port available for emergency power when battery life is running out
Waterproof (IP55) on fingerprint sensor, PCBA board, motor & USB connector
Sensitive number pad & fingerprint sensor
Audit Trail available in mobile application

Main Functions:

Mobile Application (via Bluetooth) : Act as main administration; Mobile lock/unlock (e-key)
Antipeep password (PIN): It can be customized (4-9 digits); One-time dynamic password available (suitable for AirBnb); User capacity up to 150
Card: NFC Tag, Identity card (IC), Touch N Go card (TNG) and residential access card can be used to unlock; User capacity up to 200
Fingerprint: Semi-conductor biometrics; High recognition rate ~98.9%; User capacity up to 200
Mechanical keys: 2 provided; For emergency purposes

Technical Information:
